Product Introduction

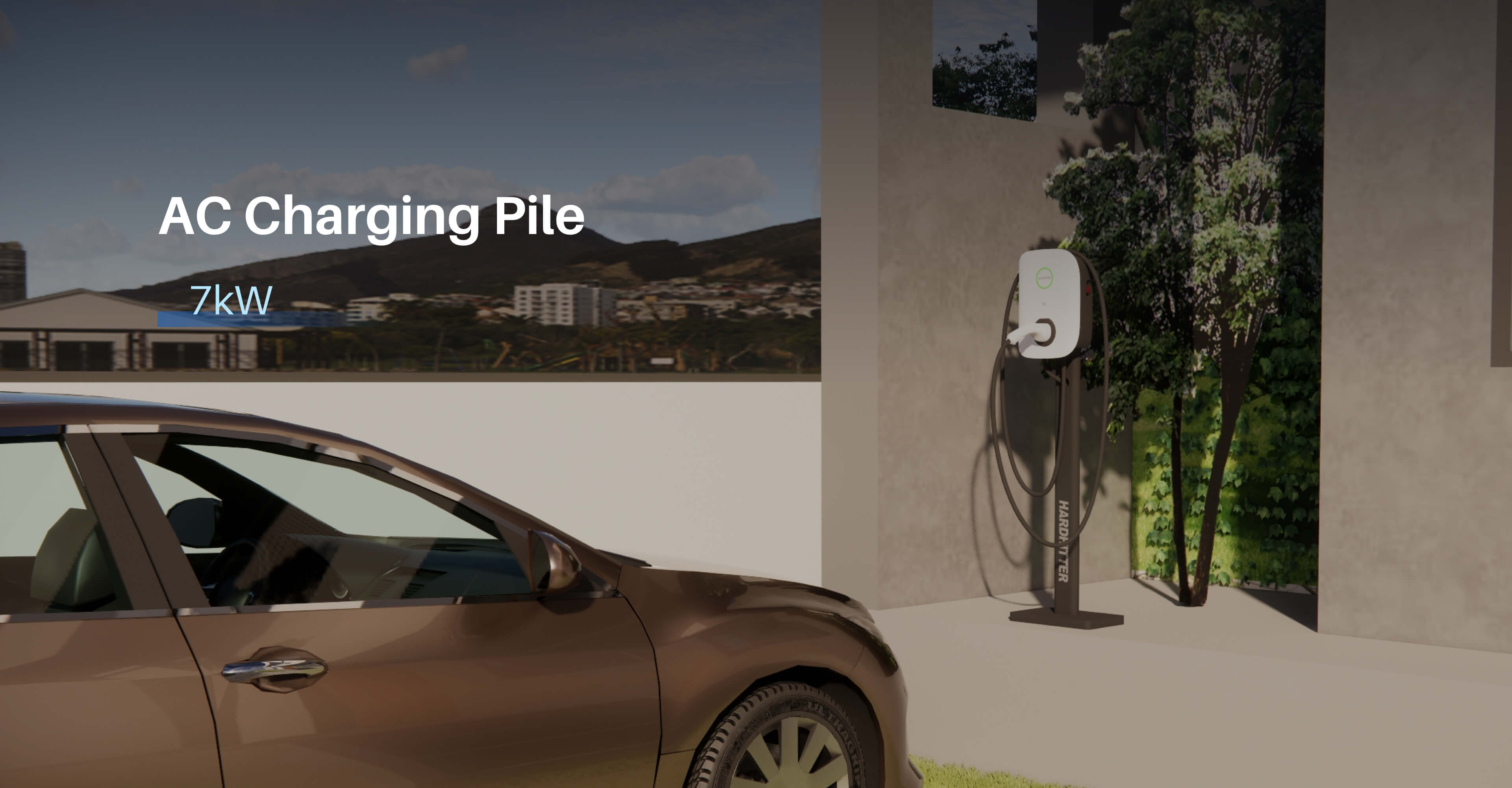

It supports both wall-mounted and column installation, compatible with 99% of new energy vehicle models, with smart control through an app and built-in data management platform. It can be customized and is suitable for residential parking spaces and small charging stations.
Charging Power
High Protection
Equipped with multiple protection methods such as overvoltage protection, overcurrent protection, temperature protection, leakage current protection, adhesion detection protection, etc., with high safety.
Compact

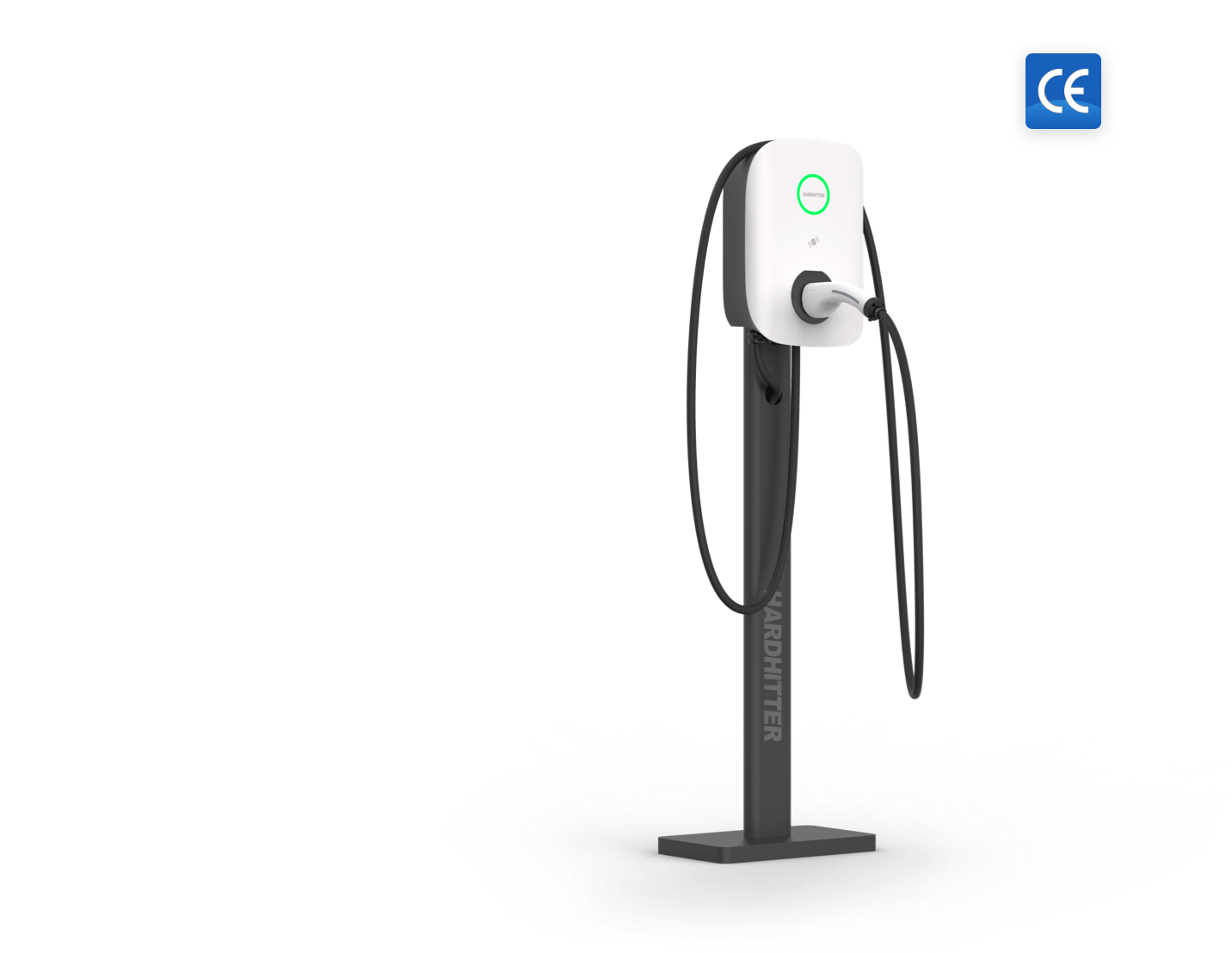

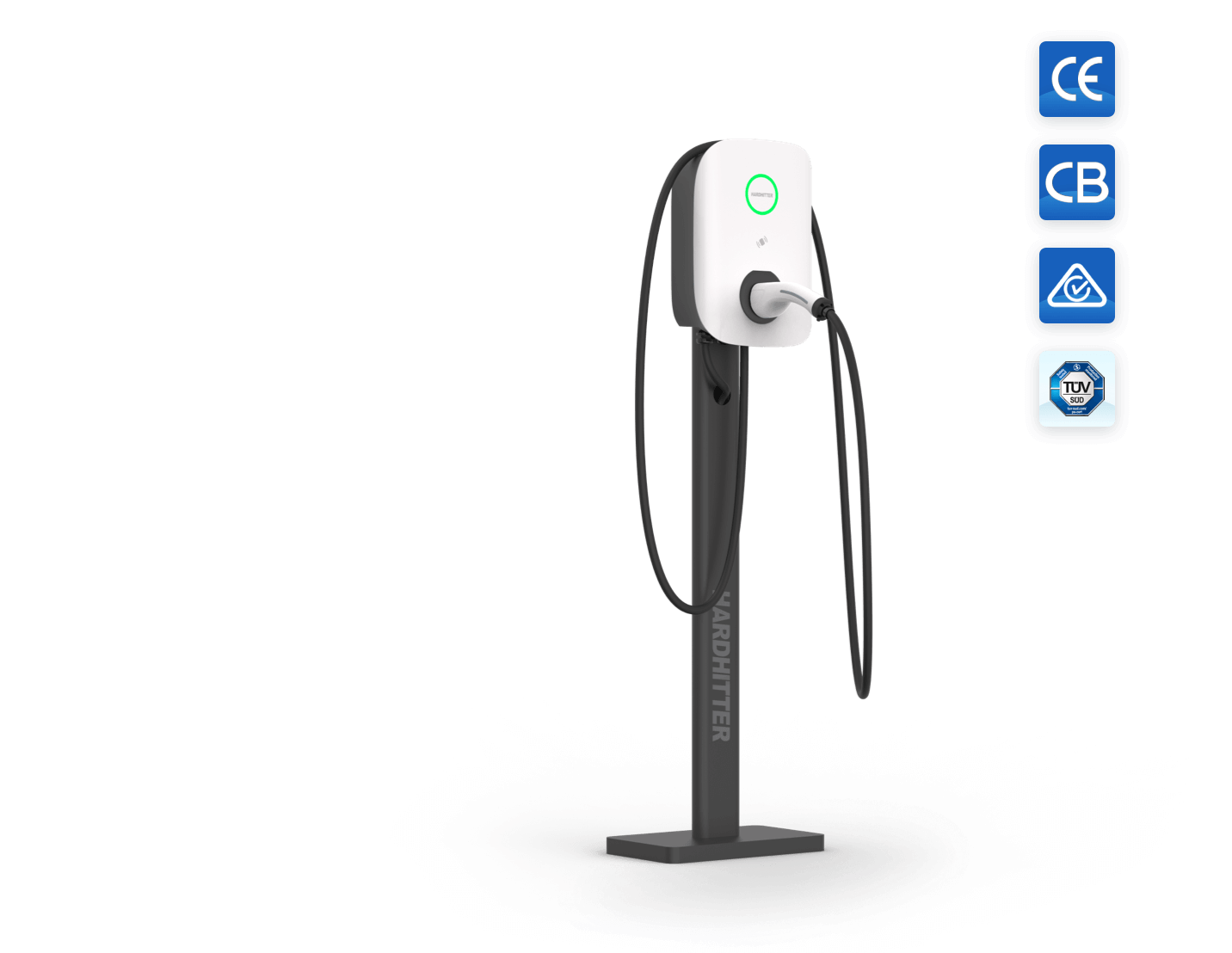

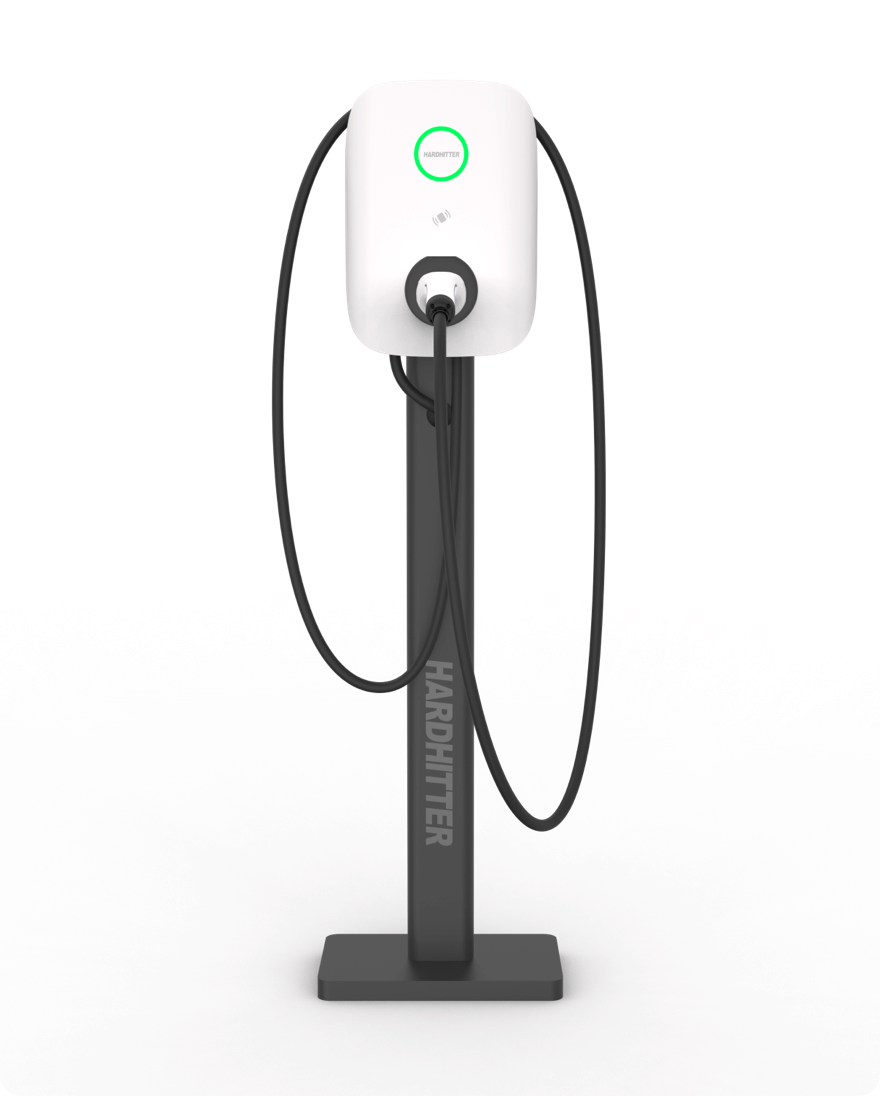

Small size, can be installed on the wall or on the ground, convenient for installation and wiring, suitable for various scenarios.
Comprehensive Startup Methods
Support multiple startup charging methods such as scanning code charging, swiping card charging, plug and play charging, remote startup charging, timed charging, etc.
Technical Specifications
AC Input
Input Voltage
AC230/400V±10%
Frequency
45-65Hz
Network Type
TT/TN
AC Output
Rated Power
7/11/22kW
Output Current
32/16/32A
Charging Mode
Mode 3
General Specifications
Measure
MID meter
Protection Rating
IP54/IK10,LCD:IK08
Humidity
5%~95%(no condensing)
Altitude
≤2000m
Operation Temperature
-30°C~55°C
Installation
Floor/ Wall-mounted
Gun Line Length
5m(Optional)
Connector
Type2
EMC
ClassB
RCD
TypeA 30mA+DC 6mA
Other
Communication Interface
Ethernet/Wi-Fi(optional)/ Bluetooth/4G(optional)
Communication Protocol
OCPP1.6J(2.0 optional)
Start Mode
APP/ Bluetooth / RFID (optional) / Screen (optional)/ Plug and charge
Protection
Overcurrent protection, short circuit protection, overvoltage protection, undervoltage protection, surge protection, over temperature protection, PME fault protection, emergency stop protection(optional), relay adhesion protection,etc.
Application
Home Charging
Workplaces
