Product Introduction

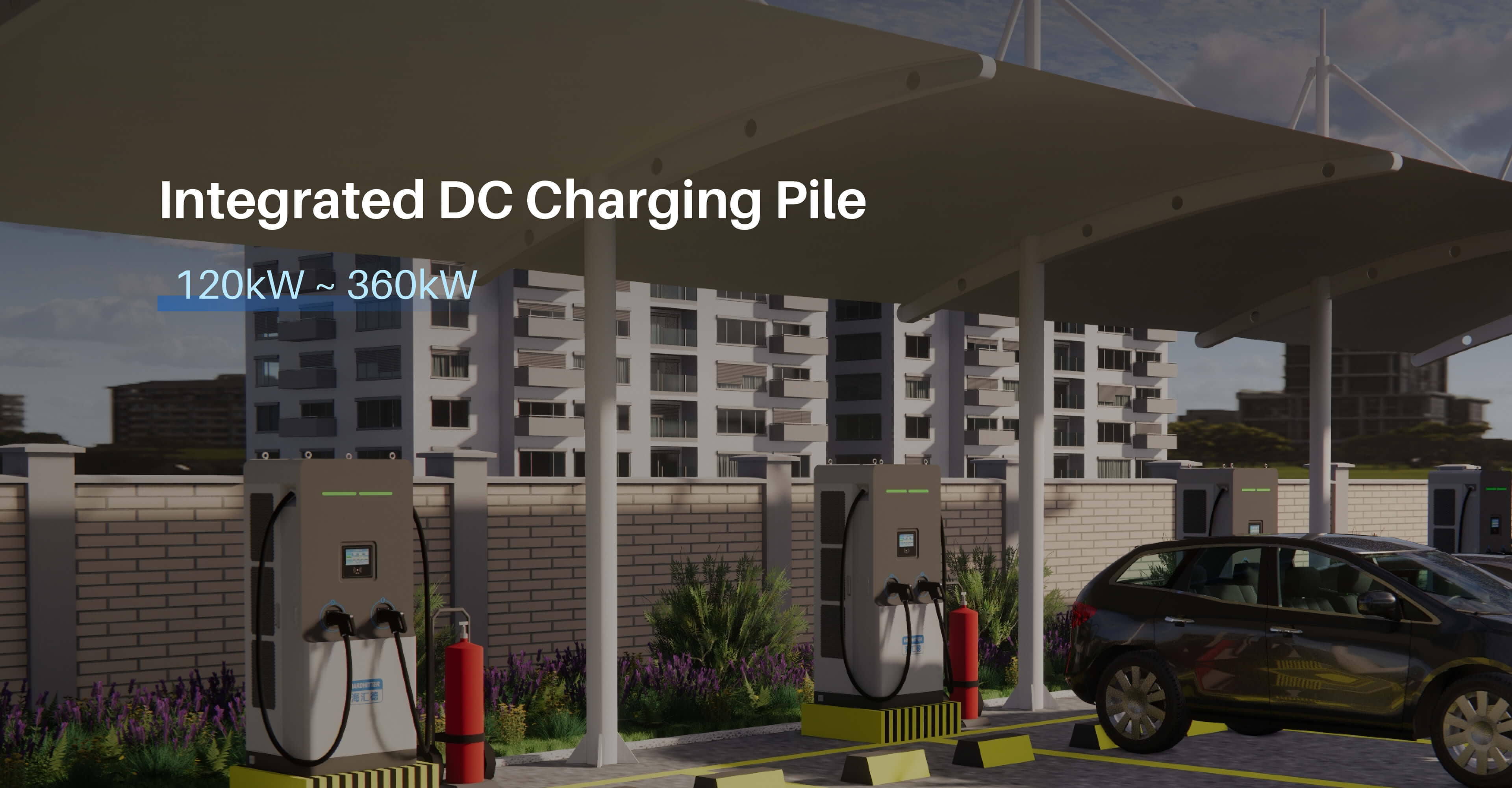

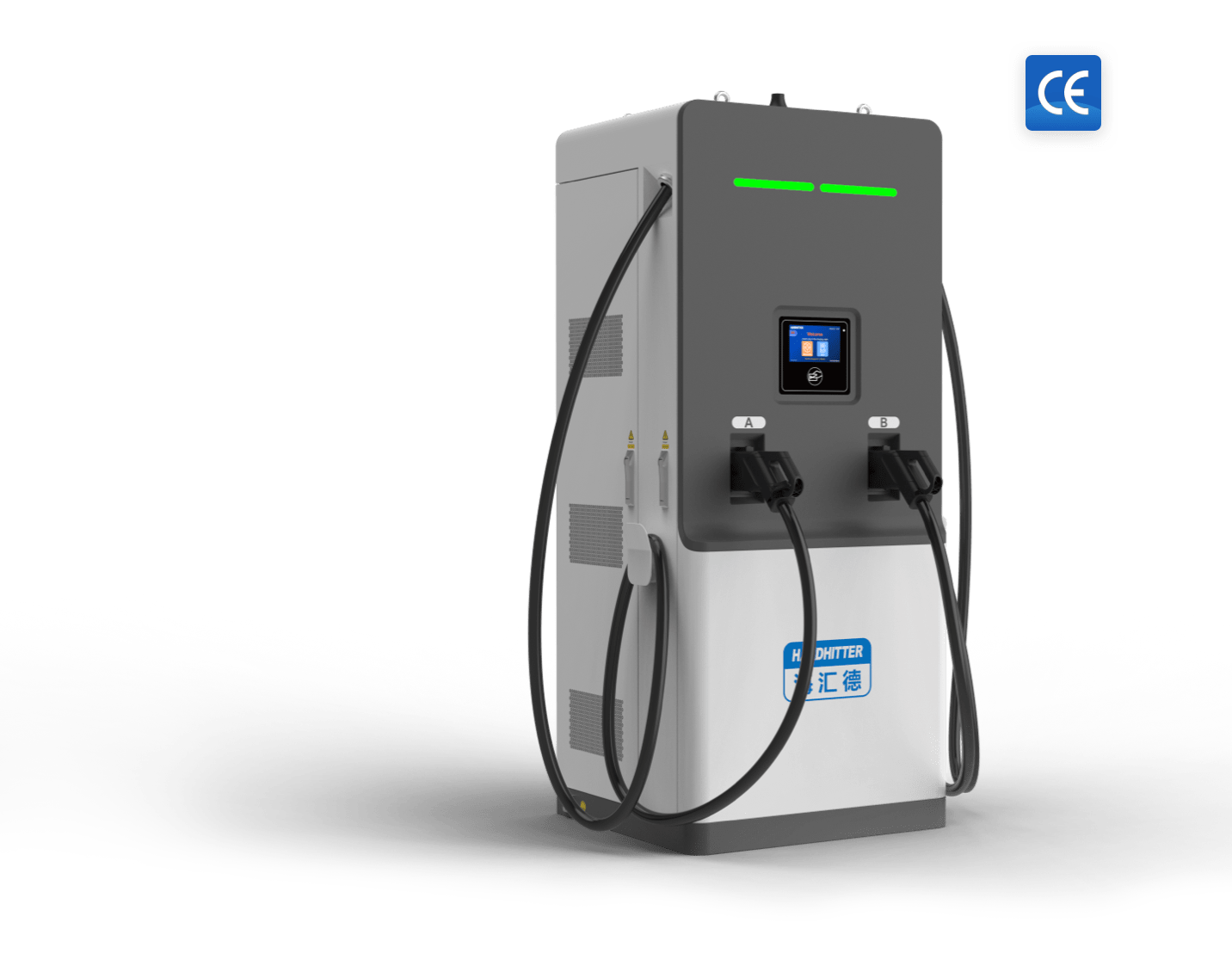

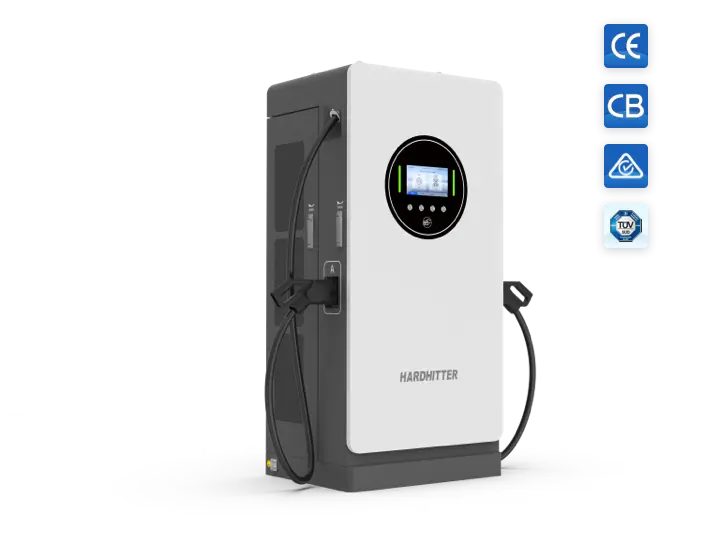

The integrated DC charging pile is divided into products such as one gun, two guns, four guns. The integrated charging pile combines power units, charging guns, etc. into a charging cabinet, with a simple structure and convenient installation. Suitable for scenarios such as decentralized charging stations, heavy truck fast charging stations, and port fast charging stations, etc.
Charging Power
Flexible Configuration
Flexible configuration of 60-320kW power can be achieved by simply configuring the number of power modules. Also having multiple flexible and configurable networking methods.
Safe and Reliable
A comprehensive protection mechanism includes active safety protection functions to ensure personal safety.The charging module is designed with full glue filling, and the charging cabinet is designed with high protection to ensure the long-term reliability of the equipment.
Easy to Use

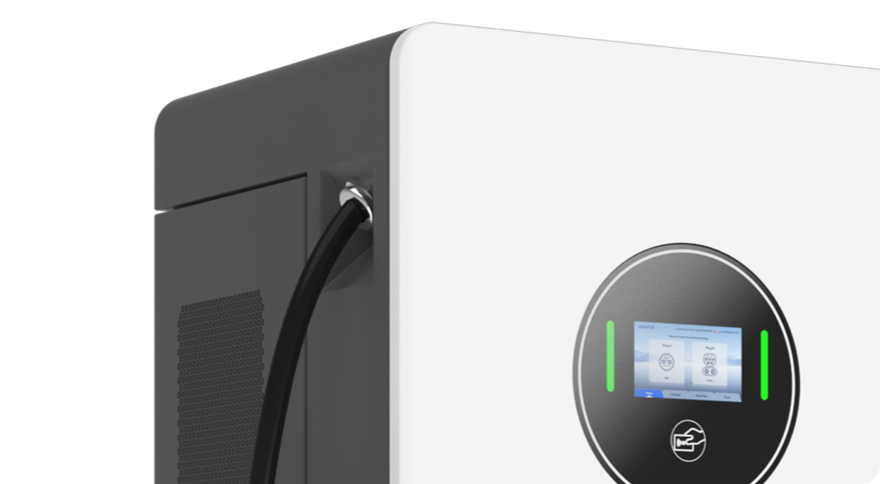

Equipped with a 7-inch touch screen, supporting multiple languages, simple and easy to use. Supports multiple payment methods, including credit cards, RFID, apps, etc.
Technical Specifications
DC Output
Rated Power
60/80/120/160/180/200/240/300/320kW
Output Voltage
DC200-1000V
Output Current
CCS2: Max250A     GBT: Max250A
Connector Types
CCS2/GBT
Gun Line Length
Car:4.5m     Bus:6m(optional length)
Efficiency
≥95%(load rate≥50%)
AC Input
Input Voltage
AC400V±10%, 3P+N+PE
Frequency
45-65Hz
Power Factor
≥0.99(load rate≥50%)
THDi
≤5%(load rate≥50%)
Environmental Conditions
Humidity
5%~95%(no condensing)
Altitude
≤2000m
Operation Temperature
-40°C-65°C(below -30°C and above 55°C derating operation)
Mechanical Specifications
Protection Rating
IP55
Wiring Method
Bottom Incoming
Approx Weight
About 298kg (no modules)
General Specifications
User Interface
LED+7"LCD screen
Start Mode
APP/ RFID (optional)
Communication Interface
Ethernet/4G(optional)/WIFI(optional)
Communication Protocol
OCPP1.6J(2.0 optional)
Charging Standards
IEC 61851-1/IEC 61851-23/IEC 61851-21-2
EMC Standards
EMC Class A
Protection
Overcurrent, overvoltage, undervoltage, ground fault including DC leakage protection, surge protection,etc.
Application
Fleet
Smart Transportation
Commercial
