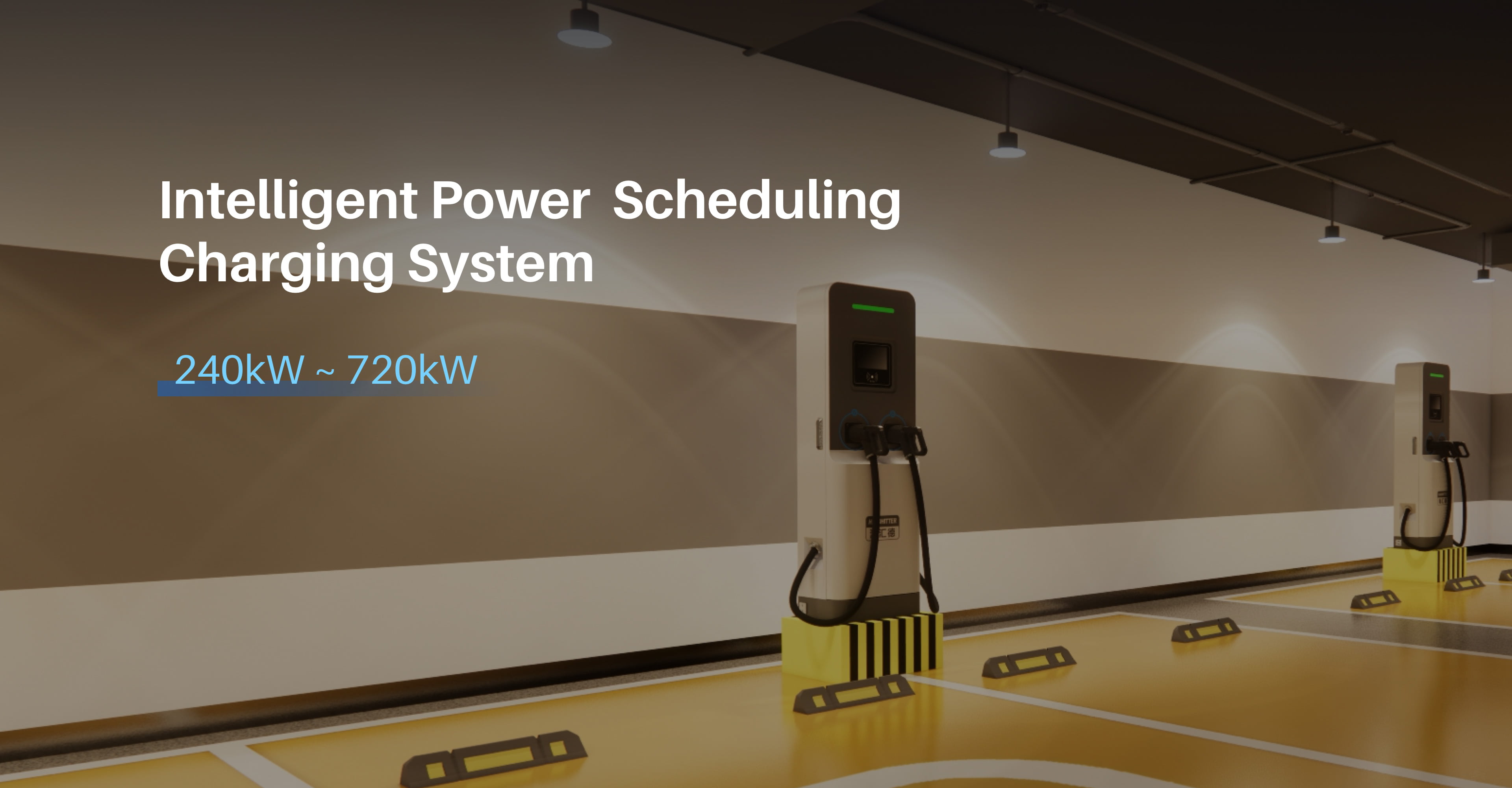

Intelligent Power Scheduling Charging System| HARDHITTER|charging station,charging pile

Product Introduction

The intelligent power dynamic scheduling charging system can achieve one station with multiple vehicles, one machine with multiple guns, and one gun with variable charging power. By adopting intelligent power scheduling technology, the AC incoming line can share and reuse with low comprehensive loss.The layout of charging spaces may be customized according to the site conditions to maximize the utilization of the charging space.

Charging Power

Intelligent Power Scheduling

By using full matrix topology, any charging module can be scheduled to any charging gun, greatly improving equipment utilization. And it has the function of smooth expansion.

Flexible Configuration

Flexible configuration of 240-720kW power can be achieved by simply configuring the number of power modules. Power can also be expanded by increasing the number of power cabinets.Multiple types of charging dispensers can be flexibly configured.

Safe and Reliable

A comprehensive protection mechanism includes active safety protection functions to ensure personal safety.The charging module is designed with full glue filling, and the charging cabinet is designed with high protection to ensure the long-term reliability of the equipment.

Easy to Use

Equipped with a 7-inch touch screen, supporting multiple languages, simple and easy to use. Supports multiple payment methods, including credit cards, RFID, apps, etc.

Technical Specifications

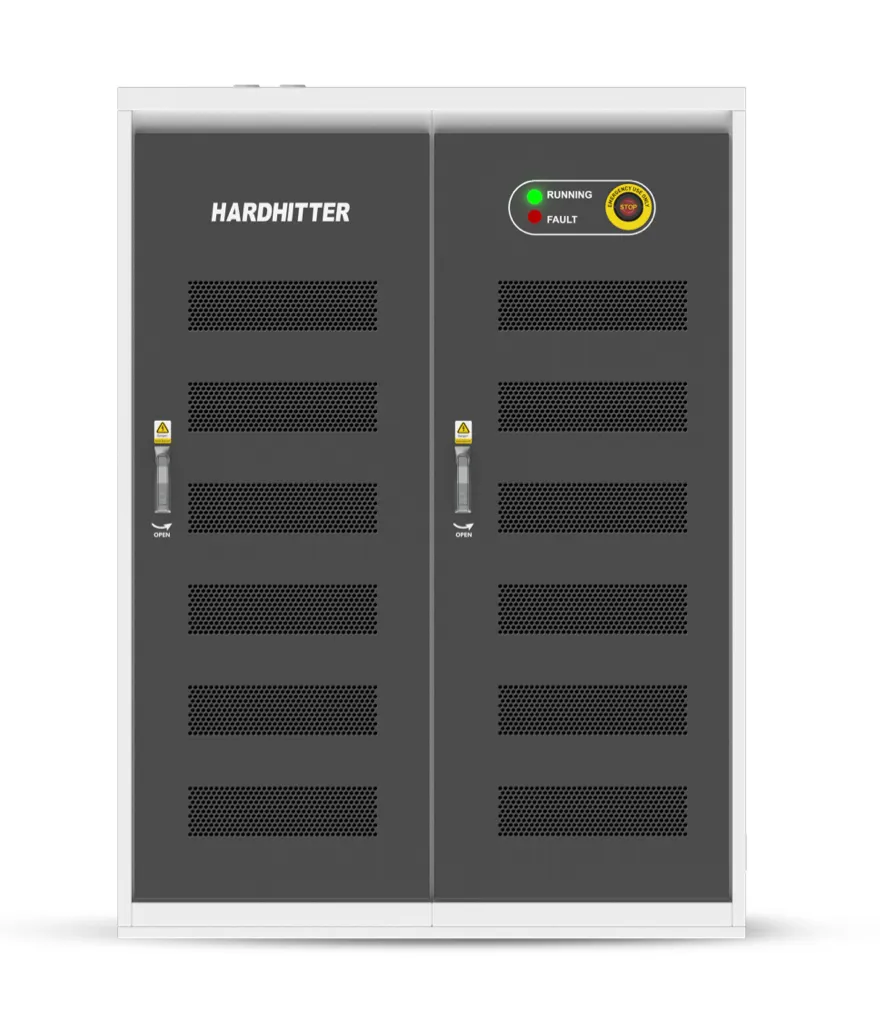

Charging Cabinet

DC Output

Rated Power

240kW/300kW/360kW/480kW/600kW/720kW

Output Voltage

DC200-1000V

Output Current

CCS2: Max250A GBT: Max250A

Connector Types

CCS2/GBT

Gun Line Length

Car:4.5m Bus:6m(optional length)

Efficiency

≥95%(load rate≥50%)

AC Input

Input Voltage

AC400V±10%, 3P+N+PE

Frequency

45-65Hz

Power Factor

≥0.99(load rate≥50%)

THDi

≤5%(load rate≥50%)

Environmental Conditions

Humidity

5%~95%(no condensing)

Altitude

≤2000m

Operation Temperature

-40°C-65°C(below -30°C and above 55°C derating operation)

Mechanical Specifications

Protection Rating

IP55

Wiring Method

Bottom Incoming

Approx Weight

About 298kg (no modules)

General Specifications

Start Mode

APP/ RFID(optional)

Communication Interface

Ethernet/4G(optional)/WIFI(optional)

Communication Protocol

OCPP1.6J(2.0 optional)

Charging Standards

IEC 61851-1/IEC 61851-23/IEC 61851-21-2

EMC Standards

EMC Class A

Protection

Overcurrent, overvoltage, undervoltage, ground fault including DC leakage protection, surge protection,etc.

Double Guns Floor Mounted Advertising Charging Dispenser

General Specifications

Interface

4.3 Inch Touch Screen + 32 Inch Display Screen, LED

Dimensions

600*290*1495mm(W*D*H)

Approx Weight

130kg

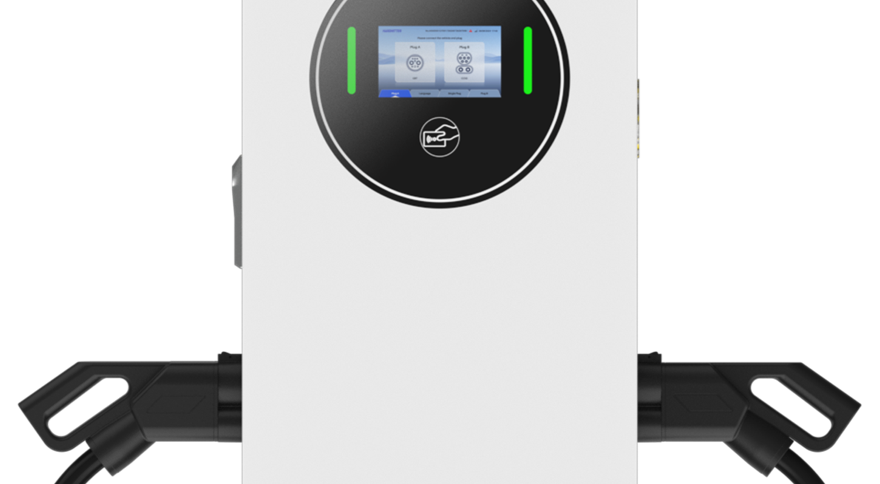

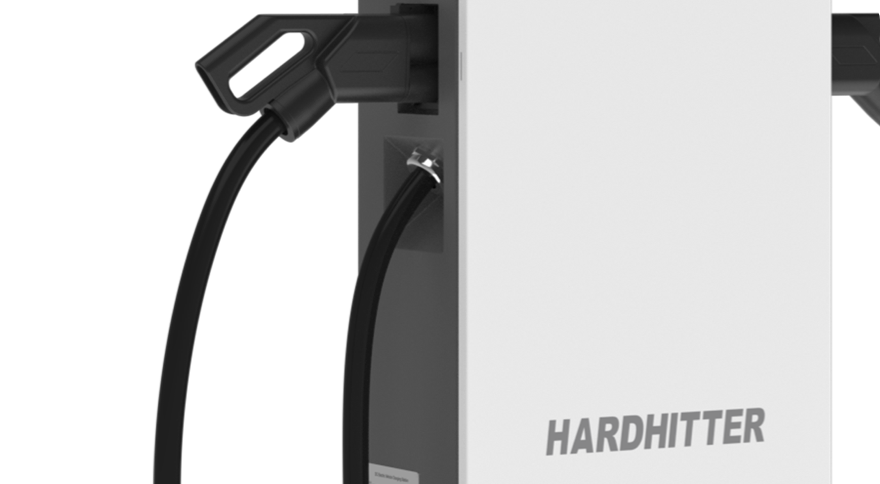

Double Guns Floor Mounted Charging Dispenser

General Specifications

Interface

7 Inch Touch Screen, LED

Dimensions

450*295*1400mm(W*D*H)

Approx Weight

105kg
