Product Introduction

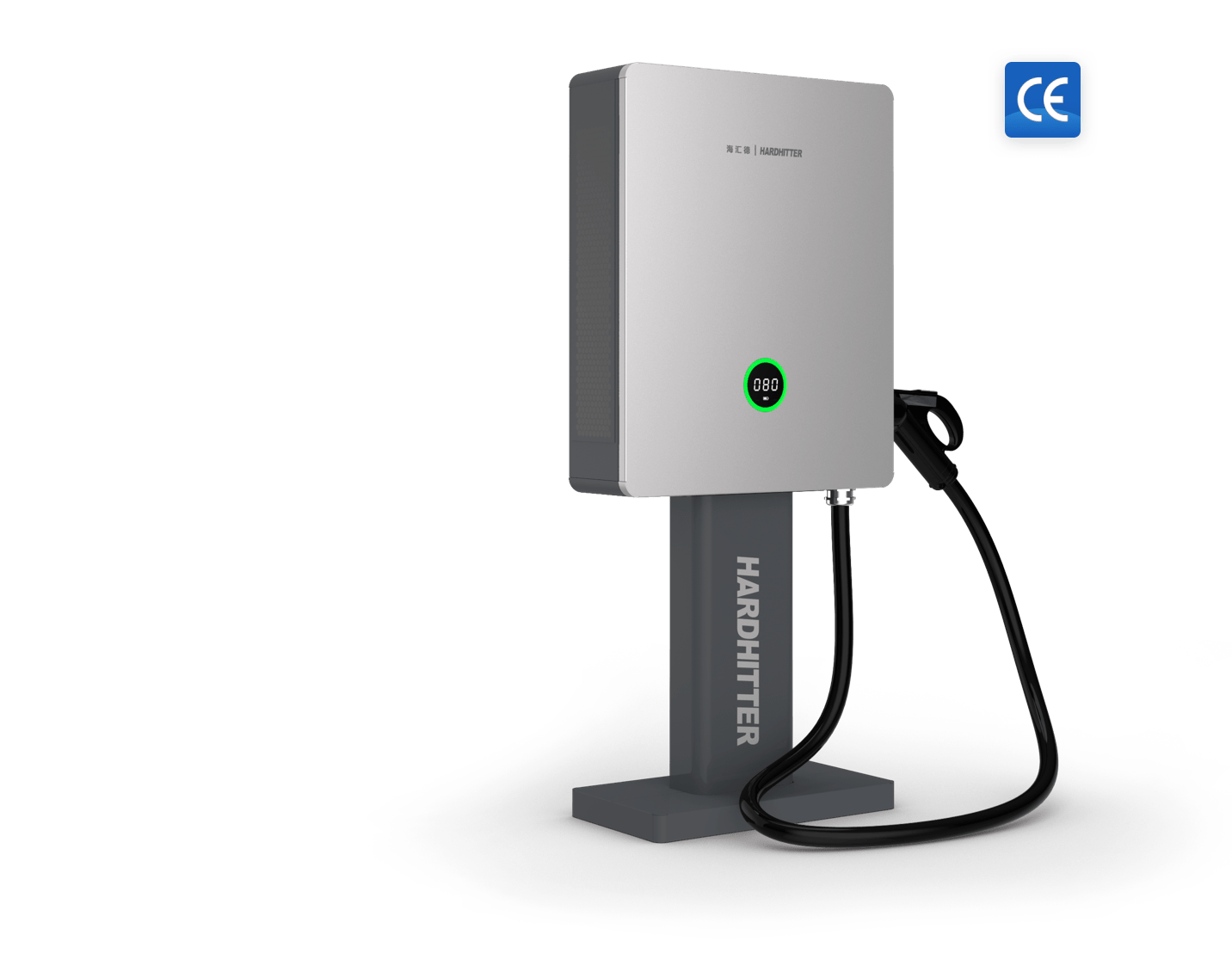

It supports both wall-mounted and column installation methods, comes in small size and stylish appearance, and four versions for residential use and operation, features intelligent charging control and comprehensive charging process monitoring, it also supports APP control and backend data monitoring.
Charging Power
High Protection
Adopting high-efficiency dustproof mesh, it can effectively filter dust, and the protection level can reach IP55. The power module adopts a fully glue-pouring process, with high protection level, high system reliability, and long system life.
Compact
The system has a small volume and is easy to install and connect.
Comprehensive Startup Methods
Support multiple charging startup methods such as scanning code charging, swiping card charging, plug and play charging, remote start charging, timed charging, etc.
Technical Specifications
DC Output
Rated Power
30kW/40kW/60kW/80kW
Output Voltage
DC200-1000V
Output Current
30kW/40kW: CCS2:MAX100/130A   GBT:MAX100/130A
60kW/80kW: CCS2:MAX200/250A   GBT:MAX200/250A
Connector Types
CCS2/GBT
Gun Line Length
Car:4.5m     Bus:6m(optional length)
Efficiency
≥95%(load rate≥50%)
AC Input
Input Voltage
AC400V±10%, 3P+N+PE
Frequency
45-65Hz
Power Factor
≥0.99(load rate≥50%)
THDi
≤5%(load rate≥50%)
Environmental Conditions
Humidity
5%~95%(no condensing)
Altitude
≤2000m
Operation Temperature
-40°C-65°C(below -30°C and above 55°C derating operation)
Mechanical Specifications
Protection Rating
IP55/IK10
Wiring Method
Bottom Incoming
Approx Weight
30/40kW:About 100kg (no modules)     60/80kW:About 185kg (no modules)
General Specifications
User Interface

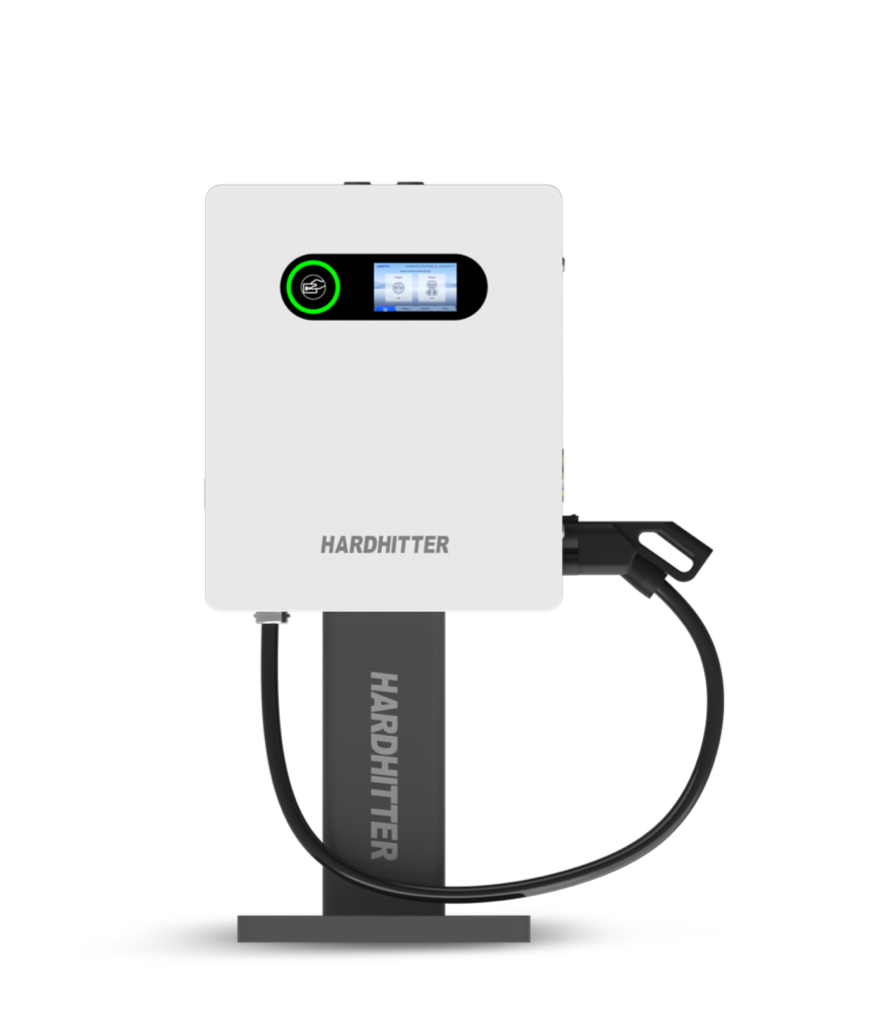

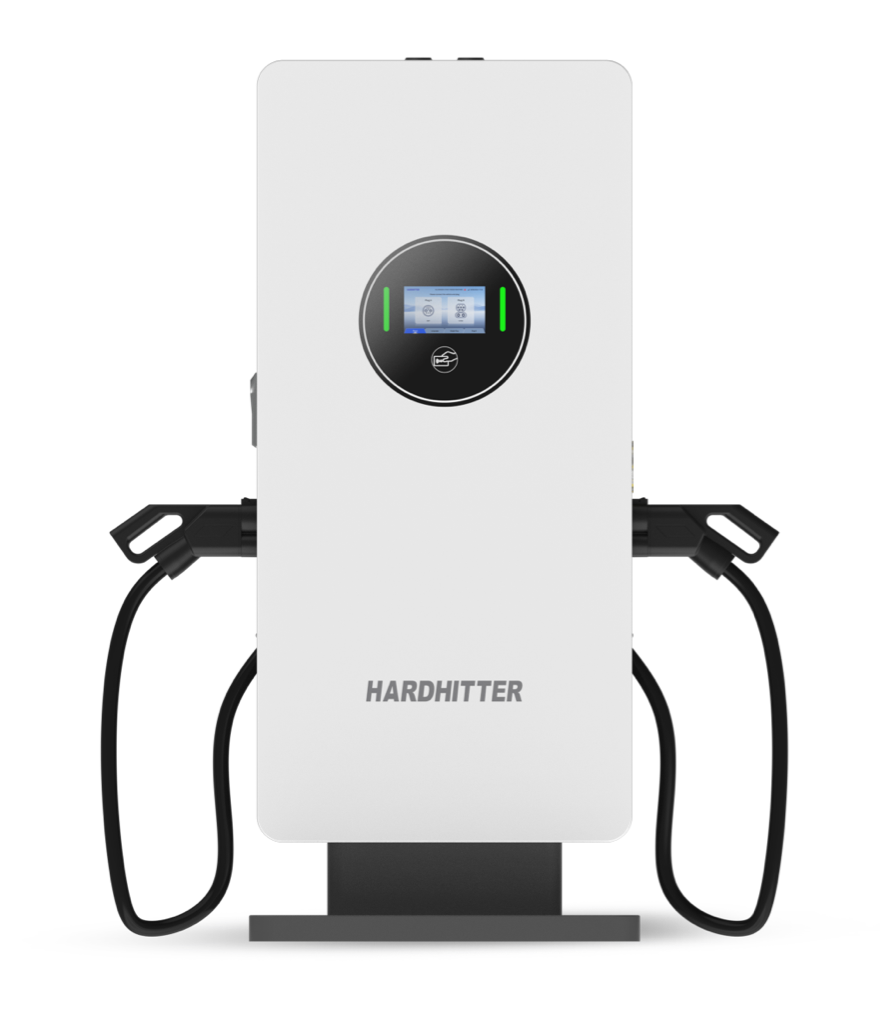

30/40kW:LED     60/80kW:LED+7"LCD screen
Start Mode
30/40kW:APP     60/80kW:APP/ RFID (Optional)
Communication Interface
Ethernet/4G(optional)/WIFI(optional)
Communication Protocol
OCPP1.6J(2.0 optional)
Charging Standards
IEC 61851-1/IEC 61851-23/IEC 61851-21-2
EMC Standards
EMC Class A
Protection
Overcurrent, overvoltage, undervoltage, ground fault including DC leakage protection, surge protection,etc.
Application
Home Charging
Workplaces
Commercial
