Product Introduction

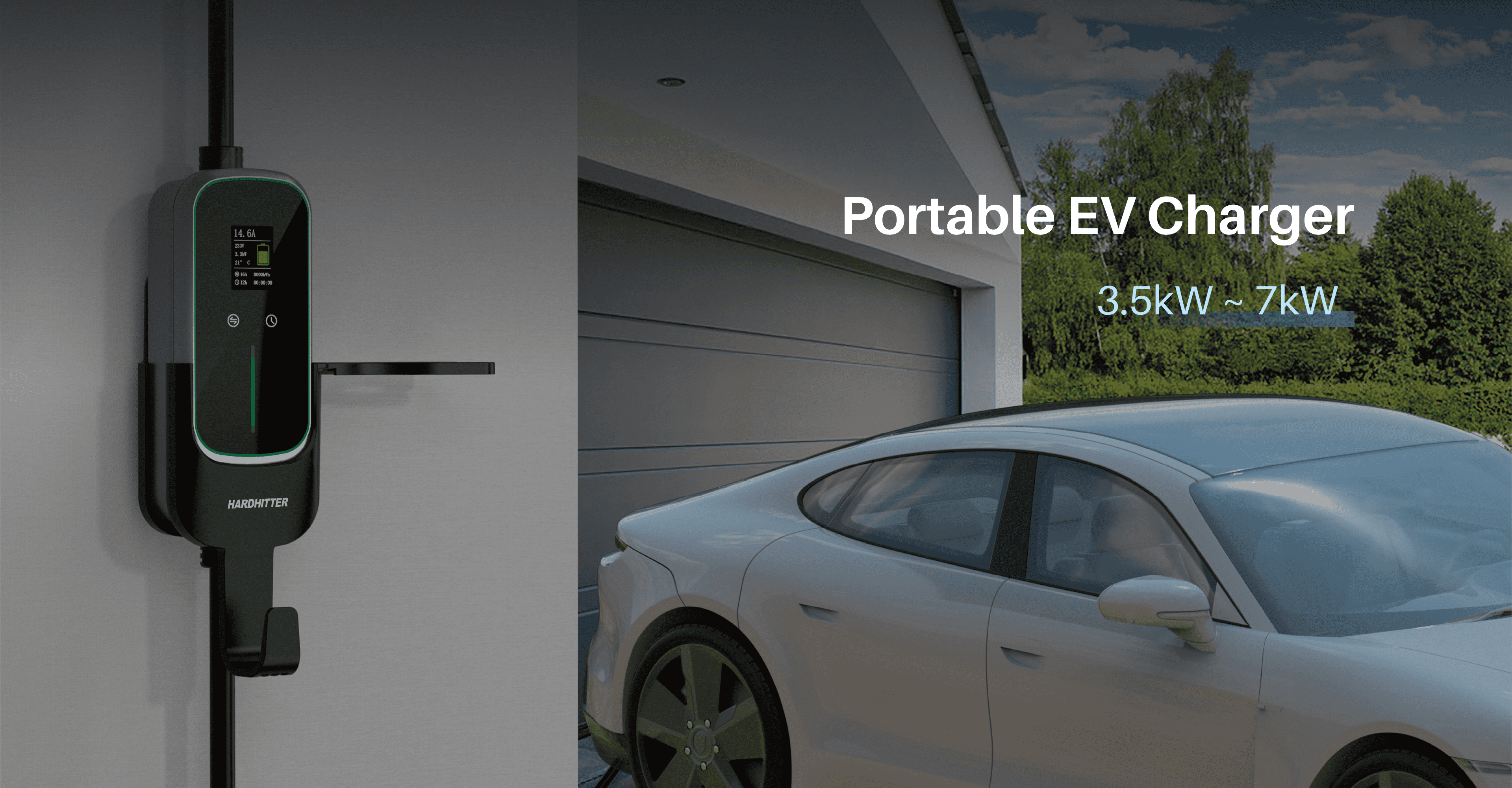

The portable EV charger provides you with the necessary power in a reliable and user-friendly manner. Equipped with a high-quality charging cable and an intuitive interface that promotes energy efficiency, this charger streamlines your everyday charging routine and reduces your energy expenses.
Charging Power
Technical Specifications
Electric Parameters
Rated Voltage
230V AC
Rated Current
6-16A/10-32A AC, 1phase
Frequency
50Hz/60Hz
Insulation Resistance
>1000mΩ
Terminal Temperature Rise
<50K
Withstand Voltage
2500V
Contact Resistance
0.5mΩ Max
RCD
30mA AC + DC 6mA
Mechanical Performance
Mechanical Life
>10000 times no-load plug in/out
Coupled Insertion Force
45N-100N
Withstandable Impact
Dropping from a 1m-height and running-over by a 2T vehicle
Material
Enclosure
Thermoplastic, UL94 V-0 flame retardant grade
Cable Material
TPU
Terminal
Silver-plated copper alloy
Safety
Ingress Protection
IP55 for the EV connector and IP67 for the control box
Certificates
CE/TUV/UKCA/CB
Certification Standard
EN 62752: 2016+A1 IEC 61851, IEC 62752
Environment
Working Temperature
-30°C to +55°C
Storage Temperature
-40°C to +80°C
Working Humidity
≤95%RH
Working Altitude
<2000m
Other
Screen Size
2 inch color screen
Application
Home Charging
Workplaces
