Product Introduction
The charging speed is close to the refueling speed: The hardhitter intelligent Scheduling Charging System super charging terminal has a maximum output power of 500kW, and can travel over 300 kilometers after 5 minutes of charging. The charging speed is already close to the refueling speed.
Charging Speed Approaching Refueling Speed

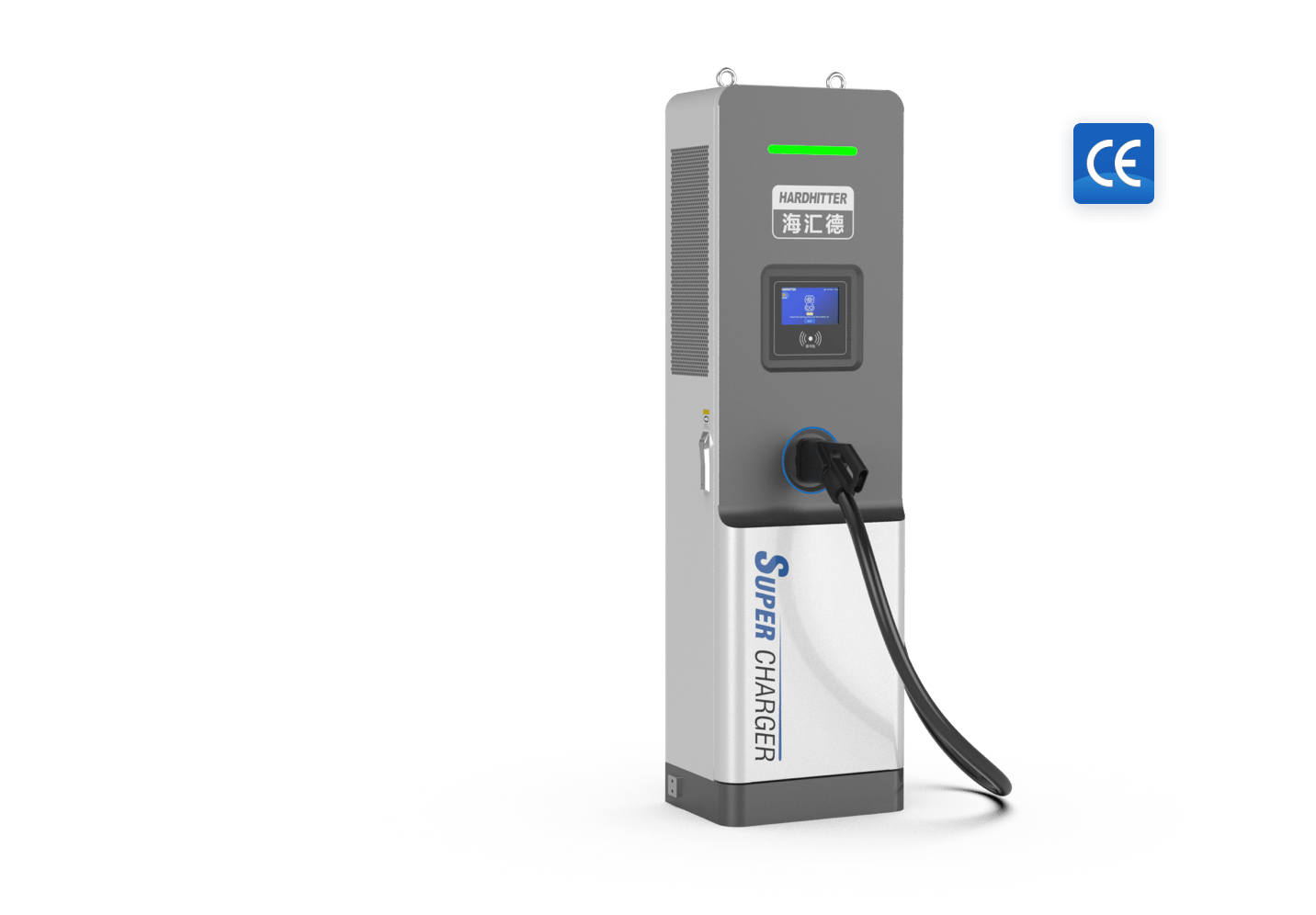

Hardhitter super charging dispenser ,with a maximum output power of 500kW, can charge over 300 km in 5 minutes, and the charging speed is close to the refueling speed.
Free Combination of Super Charging and Fast Charging
Flexible combination of super charging dispenser and fast charging dispenser,intelligent scheduling of different vehicle models, automatic matching, efficient operation, and reduce losses.
Smooth Expansion
The selection of charging system should fully consider the future market demand and be able to meet the demand for super high-power charging upgrades of future electric vehicles.The intelligent power scheduling charging system can achieve smooth expansion and support continuous iteration in the later stage.
Technical Specifications
DC Output
Output Voltage
DC200-1000V
Output Current
CCS2(Liquid-cooled): Max500A
Connector Types
CCS2(Liquid-cooled)
Gun Line Length
Car:4.5m     Bus:6m(optional length)
Environmental Conditions
Humidity
5%~95%(no condensing)
Altitude
≤2000m
Operation Temperature
-40°C-65°C
Mechanical Specifications
Protection Rating
IP55
Wiring Method
Bottom Incoming
Approx Weight
About 298kg(no modules)
General Specifications
User Interface
LED+7"LCD screen
Start Mode
APP/ RFID (Optional)
Charging Standards
IEC 61851-1/IEC 61851-23/IEC 61851-21-2
EMC Standards
EMC Class A
Protection
Overcurrent, overvoltage,over temperature protection,short circuit protection, surge protection,etc.
Application
Fleet
Smart Transportation
Special Charging
Super Charging
